How to change the Windows XP Product Activation Key Code

To determine eligibility for the update, Service Pack 1 compares the Windows XP product ID on the system to this list. The comparison and the list reside locally on the users PC and no information is sent to Microsoft as part of this process.

Digg This!     StumbleUpon     Del.icio.us

RELATED CONTENT Windows Systems and Network Management Tools and Techniques Top five Server Core management tips for Windows 2008 Top free tools for Windows server administration A first look at Internet Information Services 7.0 Windows registry hack improves offline file access for mobile users Reducing the size of network backups in Windows Monitor network bandwidth with CyberGauge How to format NTFS: More tricks to improve file system performance Key enhancements to SCCM give admins more control over assets, licensing Archiving information with New-Item in Windows PowerShell Debugging Userenv issues using Windows new event viewer

RELATED RESOURCES 2020software.com, trial software downloads for accounting software, ERP software, CRM software and business software systems Search Bitpipe.com for the latest white papers and business webcasts Whatis.com, the online computer dictionary

Service Pack 1 for Windows XP will fail to install on installations of Windows with one of the following product IDs: XXXXX-640-0000356-23XXX and XXXXX-640-2001765-23XXX

The following message will be displayed if installation fails for this reason:

Service Pack 1 Setup Error: The product key used to install Windows is invalid. Please contact your system administrator or retailer immediately to obtain a valid product key. You may also contact Microsoft Corporation's Anti-Piracy Team by emailing piracy@microsoft.com if you think you have purchased pirated Microsoft software. Please be assured that any personal information you send to the Microsoft Anti-Piracy team will be kept in strict confidence.

How to change your Product Activation Key in Windows XP
If the product ID matches the invalid keys above, you may need to change the key (re-enter a valid key) in order to install Windows XP service pack 1, and to make sure your environment is legal. You could completely re-install Windows XP Professional or you can try the method below. (Please backup your system before attempting this.) This workaround is only for the corporate editions of Windows XP Professional using a compromised or illegitimate key. Windows XP Home Edition and retail versions of XP Professional are not affected by Service Pack 1. Although this procedure may work with other versions of XP, we have only tested it on the corporate edition (volume license version) of Windows XP Professional.

Note: Before you modify the registry, make sure to back it up and make sure that you understand how to restore the registry if a problem occurs.

Backup your Registry/System State

• Backup your system state by clicking Start --> Run > and typing ntbackup -- >. Click the Advanced Mode button in the Backup Utility Wizard. Click the Backup tab, then in Click to select the check box for any drive, folder, or file that you want to back up, select the System State.
• As an alternative, you can backup just the Registry by clicking Start --> Run --> and type in Regedit From within the Regedit screen, right click My Computer, choose Export, name the file whatever you choose, and click Save.

To change the product ID

• Log in as the local Administrator
• Click Start --> Run --> and type in Regedit

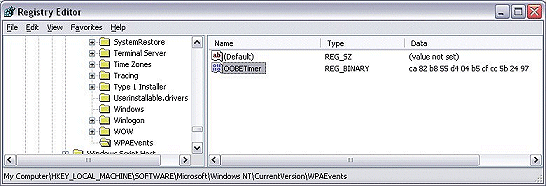

• Browse to: HKEY_LOCAL_MACHINE\Software\Microsoft\Windows NT\CurrentVersion\wpaevents



• In the right pane, right-click OOBETimer, and then click Modify
• Change at least one digit of this value to deactivate Windows
• Click OK and close regedit
• Click Start --> Run and type in: "%systemroot%\system32\oobe\msoobe.exe /a"
• Click "Yes, I want to telephone a customer service representative to activate Windows, and then click Next
• Click Change Product Key (at the bottom)
• Enter your valid Corporate Product Key
• Press Update and close the window.
• If you are returned to the previous window, click Remind me later
• Restart your computer

Verify the change

• After the workstation restarts, click Start --> Run
• Type in: "%systemroot%\system32\oobe\msoobe.exe /a" without the quotes.
• Make sure the dialog box says 'your copy of windows is already activated'

If you performed the above steps incorrectly, or used an invalid key, your system may not be able to boot. Use the F8 key to boot to the last known good configuration and retry with a valid key.

Troubleshooting
If you tried the above steps and nothing happens:

• Make sure you are logged in with the local administrator account, not just an account with Administrator privileges.
• Try replacing the %systemroot% variable with the actual drive letter that your actual directory path, especially when dual booting, or if the system path is on a drive other than C:\
• On a normal Windows XP installation, your systemroot should be C:\windows\ so the command should be C:\Windows\system32\oobe\msoobe.exe /a
• On systems upgraded from Windows NT/2000, the systemroot directory may be C:\Winnt\ so the command should be C:\winnt\system32\oobe\msoobe.exe /a
• Make sure you include a space between .exe and /a in the command:
  * Correct - C:\winnt\system32\oobe\msoobe.exe /a * Incorrect - C:\winnt\system32\oobe\msoobe.exe/a
• Product keys for XP Home Edition and retail versions of XP Professional will not activate a corporate or OEM version of XP Professional. The algorithms are different.
• If you do not have a valid installation key for Windows XP, DO NOT e-mail us asking for a key, keygen or a crack.

Scripting the process
Microsoft has provided sample scripts for remotely updating the Product ID on multiple machines in KB Article Q328874.
