The Public Folders feature has been a part of Exchange for many years. And although Microsoft and IT admins might...
prefer they didn't exist, they are useful and end users love them.
In Exchange Server 2013 and Exchange Online, Microsoft removed many of the pains IT admins faced with modern Public Folders. These systems store Public Folder content inside special Public Folder mailboxes, allowing them to be stored within Mailbox Databases. Modern Public Folders use Database Availability Groups for high availability and replication.
Organizations that want to implement a hybrid coexistence with on-premises Exchange 2013 need to give end users, with mailboxes hosted in the cloud, access to Public Folders. However, Microsoft's documentation only covers legacy versions of Exchange. This tip shows how to configure Exchange 2013.
Putting it into practice

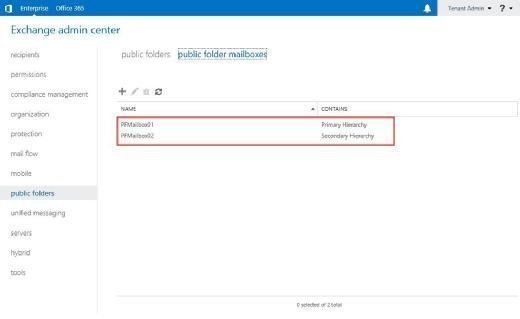

Goodman Industries is a hypothetical company with a pure Exchange Server 2013 environment that's installed and configured on-premises. It also has Office 365 Directory Sync and an Exchange hybrid configuration. The Exchange Admin Center shows the organization has two Public Folder mailboxes containing the public folder hierarchy and public folders for the organization (Figure 1).
As hybrid Exchange is configured, mailboxes can move to the cloud and email flow is configured. Users who have their mailboxes migrated to Office 365 must be able to access on-premises Public Folders using Outlook.
Configure Public Folder co-existence
To set up access to Exchange 2013 Public Folders from Exchange Online, we'll need to perform the following tasks:
- Verify AutoDiscover and Outlook Anywhere (or MAPI/HTTP) is configured and working externally.
- Ensure Public Folder mailboxes are in-scope for Directory Synchronization.
- Configure the Office 365 tenant so it knows Public Folders are located on-premises and enter the Public Folder mailbox names.
- If mail-enabled Public Folders are in use, import mail-enabled Public Folder email addresses into Office 365 so they show in the Global Address List (GAL), or configure the on-premises domains as an internal relay domain.
When Outlook connects to Office 365, it uses Autodiscover to find the correct server names. This needs to work for clients for the initial setup with Office 365 in a hybrid environment and for discovery of Public Folders.
Once Public Folder coexistence is configured, the Outlook client will connect directly to Exchange 2013 servers rather than through Office 365. As part of the initial Autodiscover process, Office 365 will return the Public Folder mailbox address, which triggers the client to initiate a secondary Autodiscover process. In most scenarios, it then must connect using Outlook Anywhere (or MAPI/HTTP, if enabled) to the on-premises Exchange 2013.

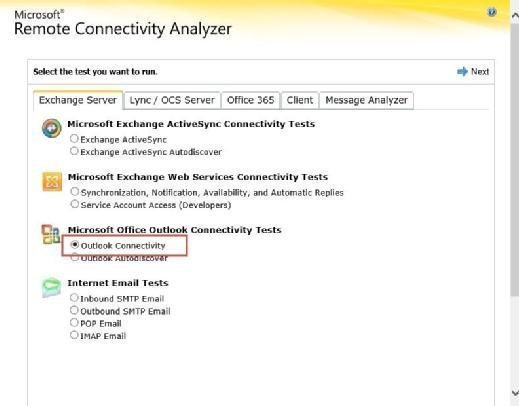

Use the Microsoft Remote Connectivity Analyzer to test Outlook connectivity and ensure Outlook Anywhere works for external clients (Figure 2).
Our next step is to ensure that the on-premises Public Folder mailboxes have Active Directory attributes copied to Office 365. This is so Exchange Online can return the right addresses as part of the Autodiscover response.

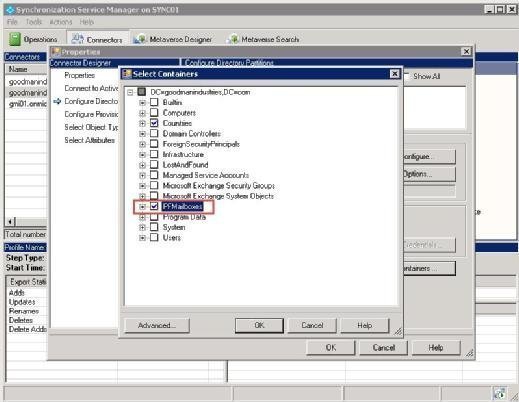

If your organization uses DirSync or Azure AD Sync Services and has filtering set up, open the FIM Console or Synchronization Service Manager. On the Connectors tab, open the AD connectors and choose Configure Directory Partitions. Ensure that the Containers containing the Public Folder mailboxes are within scope (Figure 3).

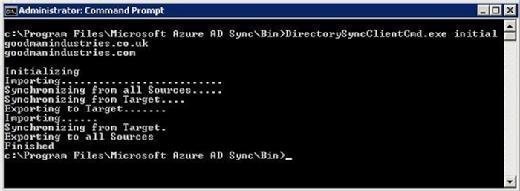

Run a full sync if any changes are made to the scope. With Azure AD Sync Services, this is triggered by navigating to the installation directory of Azure AD Sync and executing DirectorySyncClientCmd.exe with the initial parameter (Figure 4).
After testing Autodiscover and ensuring the Public Folder mailboxes are synchronized to Office 365, the next step is to configure Public Folder access and mail flow for mail-enabled Public Folders. There are two ways to accomplish this.
First configuration method
If the visibility of mail-enabled Public Folders in the GAL isn't essential, configure the Exchange Online Organization Config. Start by connecting to Exchange Online using PowerShell then use the Set-OrganizationConfig cmdlet. Substitute the Public Folder Mailbox names with on-premises Public Folder Mailboxes:
$UserCredential = Get-Credential
$Session = New-PSSession -ConfigurationName Microsoft.Exchange -ConnectionUri https://outlook.office365.com/powershell-liveid/ -Credential $UserCredential -Authentication Basic -AllowRedirection
Set-OrganizationConfig -PublicFoldersEnabled Remote -RemotePublicFolderMailboxes PFMailbox01,PFMailbox02
There are just a few steps to complete this configuration method and allow mail routing to on-premises mail-enabled Public Folders that aren't in the GAL. Configure the on-premises domain as Internal Relay in the Exchange Online Admin Center with Mail Flow Accepted Domains (Figure 5).
Second configuration method
The second and most recommended approach is to configure the organizational configuration and create objects in Office 365 to represent mail-enabled Public Folders.
Scripts for legacy versions of Exchange are available to accomplish this, but you must use a custom script for Exchange 2013. The following script should be altered to list the on-premises Public Folder Mailbox names and executed from an Exchange Management Shell. This will connect to the on-premises Exchange 2013 Servers and Exchange Online. Because two sets of Exchange cmdlets are in use, Exchange Online cmdlets are prefixed with Cloud:
$UserCredential = Get-Credential
$Session = New-PSSession -ConfigurationName Microsoft.Exchange -ConnectionUri https://outlook.office365.com/powershell-liveid/ -Credential $UserCredential -Authentication Basic –AllowRedirection
Import-PSSession $Session -Prefix Cloud
Set-CloudOrganizationConfig -PublicFoldersEnabled Remote -RemotePublicFolderMailboxes PFMailbox01,PFMailbox02
# Get On-Premises Exchange 2014 Mail-Enabled Public Folders
$MailPublicFolders = Get-MailPublicFolder
foreach ($MailPublicFolder in $MailPublicFolders)
# Create equivalent sync folders in Office 365
$EmailAddresses = @()
foreach ($EmailAddress in $MailPublicFolders.EmailAddresses)
New-CloudSyncMailPublicFolder -Name $MailPublicFolder.Name -Alias $MailPublicFolder.Alias -EntryId $MailPublicFolder.EntryId -EmailAddresses:$EmailAddresses -HiddenFromAddressListsEnabled:$MailPublicFolders.HiddenFromAddressListsEnabled
Set-CloudMailPublicFolder $MailPublicFolder.Name -DisplayName $MailPublicFolder.DisplayName -WindowsEmailAddress $MailPublicFolder.WindowsEmailAddress.ToString()
After enabling access to on-premises Public Folders in Exchange Online, admins can access the on-premises Public Folder tree the next time an Outlook client launches. The user experience will be the same to an on-premises end user when accessing the Public Folder hierarchy (Figure 6).
This is configured as part of the AutoDiscover process, where Office 365 provides Outlook with the email address of a Public Folder mailbox. Outlook then discovers the on-premises servers and makes an additional connection.

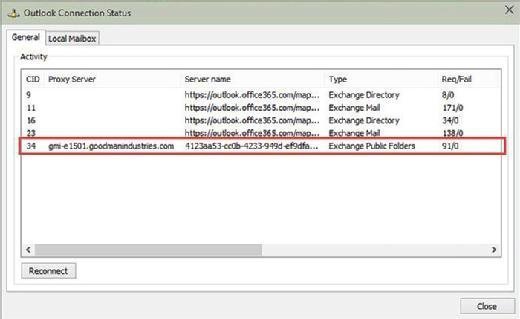

The connection can be verified by opening the Outlook Connection Status window, available by holding down the CTRL key whilst right-clicking the Outlook icon in the Windows notification area (Figure 7).
